MRTAUDIO Standard USB MIDI breath controller
One breath · Three independent layers

MRTAUDIO STANDARD
USB MIDI BREATH CONTROLLER

Route one breath input to up to three independent MIDI controls. Set each layer's destination, channel, range, response curve, Attack and Release values, then save the setup to the controller.

Buy StandardTechnical Specifications

Loading current complete-set price and availability.

WEB CONFIGURATOR + DEVICE MEMORY

CONFIGURE WITH CLARITY. PLAY WITHOUT THE BROWSER.

Monitor input pressure and processed MIDI output, edit the layers, and save the setup to P1, P2 or P3. Once the configuration is sent to the controller, the browser does not need to remain open for normal performance.

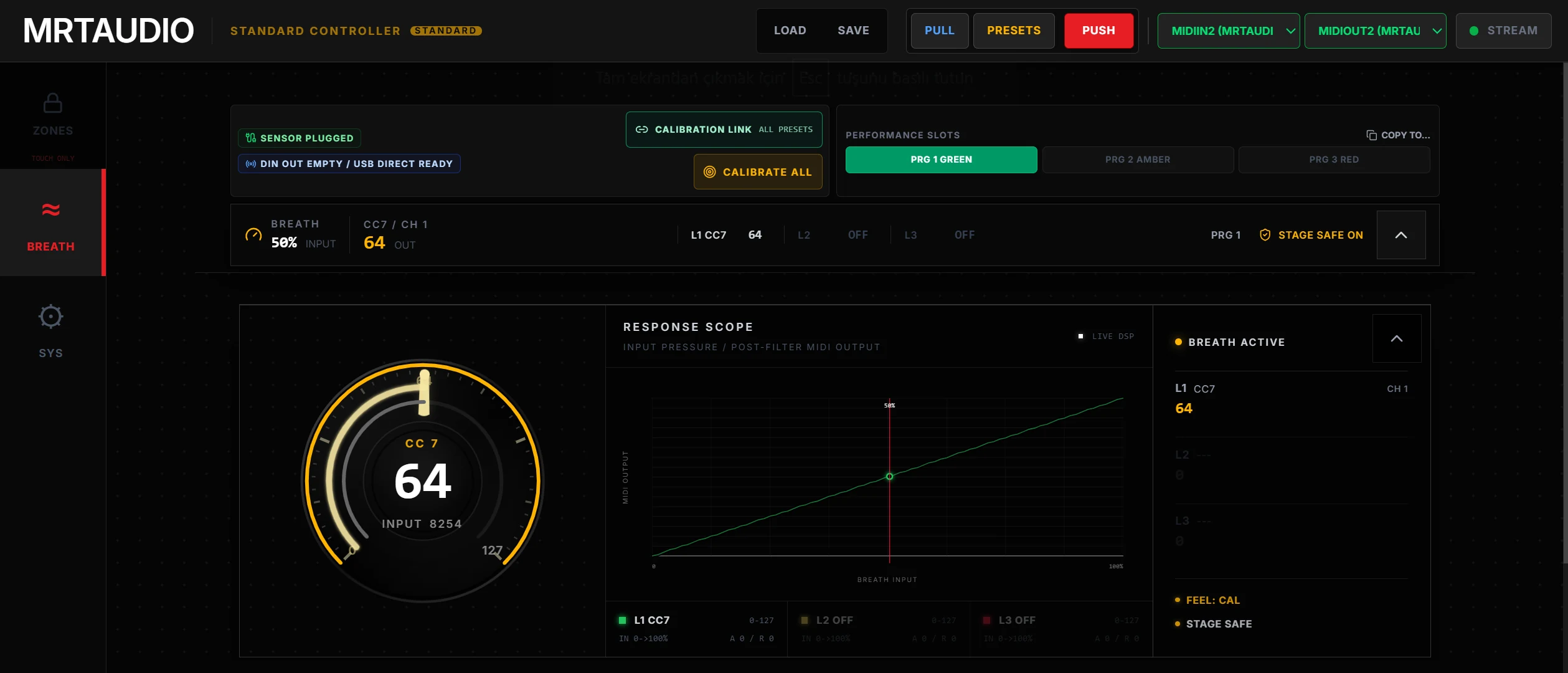

LIVE RESPONSE VIEWView breath input and the layers' processed MIDI output on the same working surface.
01

Three independent layers

Set each layer's MIDI destination, channel, input/output range and response independently.

02

Shape the response around your playing

Use curve, Attack and Release settings to define how breath movement becomes MIDI output.

03

Manage the resting response

Use Breath Onset and Stage Safe when a setup needs a defined starting or idle response.

Open Web Configurator
PERFORMANCE VIDEOS

See It in Use

See how breath control is mapped to compatible MIDI instruments and software.

Simon Oslender & Randy Brecker - Live Performance

Simon Oslender Trio - Live Performance

PRODUCT ESSENTIALS

WHAT MATTERS MOST

MRTAUDIO Standard controller connections
01
THREE-LAYER ROUTING

ONE BREATH.
THREE LAYERS.
YOUR EXPRESSION.

Give each layer its own MIDI destination, channel, input/output range, response curve, Attack and Release values, then save the setup to the controller.

MRTAUDIO Standard MODE button, encoder and status LEDs
02
ON-DEVICE CONTROL

YOUR SETTINGS.
WITHIN REACH.

Use the MODE button, encoder and three status LEDs to adjust Gain or the selected setup’s Layer 1 OUT MIN value, and switch among P1, P2 and P3 without opening the browser.

MRTAUDIO breath headset and removable mouthpiece components
03
HANDS-FREE PLAYING

KEEP BOTH HANDS
ON THE MUSIC.

Position the adjustable mouthpiece, then shape compatible MIDI parameters with your breath while you continue to play.

MRTAUDIO Breath Headset headband and sensor assembly, flexible air tube with threaded connector and two detachable mouthpieces
DESIGNED FOR BREATH CONTROL

THE COMPATIBLE HEADSET OPTION.

The Standard controller is used with a compatible MRTAUDIO breath headset. Add the headset package at checkout when you do not already own one.

HEADSET PACKAGE CONTENTS

  • 1 x MRTAUDIO Breath Headset headband and sensor assembly
  • 1 x flexible air tube with threaded connector
  • 2 x detachable mouthpieces (one primary, one spare)
View the headset option
WEB CONFIGURATOR

SHAPE THE RESPONSE
AROUND YOUR PLAYING.

Use a compatible WebMIDI browser to adjust the breath response and layer ranges, then save the setup to the controller.

  • 01
    RESPONSE SETUPSet the starting point, sensitivity and response curve to suit the way you play.
  • 02
    LAYER ROUTINGRoute one breath input to up to three independent MIDI destinations.
  • 03
    SAVE TO DEVICEStore the completed setup in the controller for later use.
MRTAUDIO Web Configurator breath response screen

CONNECTION AND MIDI GUIDES

What is a USB MIDI breath controller?Keyboards without USB MIDI host support: connections and CC7/CC11CC2 versus CC11 for breath controlUSB-MIDI and DIN MIDI connections for computers and keyboardsCalibration, Gain and Breath Onset settingsUnited States purchase options
SPECIFICATIONS

Technical Details

+
SensorAnalog Pressure Sensor
with input filtering and configurable response
Hardware InterfaceUSB-C Data & Power / DIN MIDI Output
For use with a computer or compatible MIDI hardware
MIDI RoutingConfigurable MIDI Messages
Pitch Bend, NRPN, high-resolution CC, standard CC, Note and Aftertouch modes
Control ArchitectureThree-Layer Breath Routing
3 breath layers with independent ranges, curves and routing
CompatibilityCompatible MIDI Keyboards, Modules and DAWs
USB MIDI and DIN MIDI behavior depends on the target host

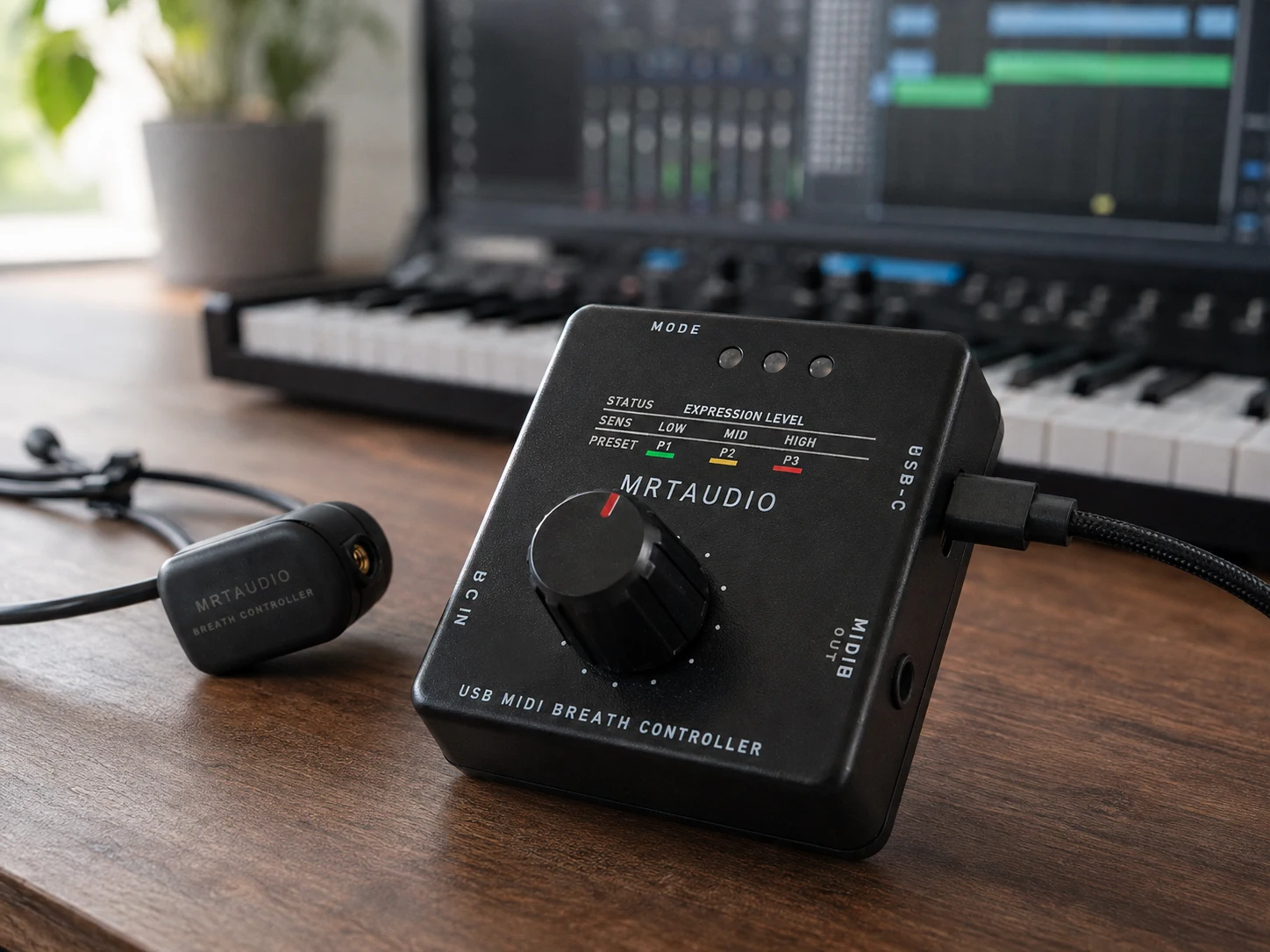

MRTAUDIO Standard USB MIDI breath controller unit
Included equipment
IN THE BOX

STANDARD
CONTROLLER UNIT.

The Standard controller includes USB data/power and TRS MIDI Type A to 5-pin DIN cables. A compatible MRTAUDIO breath headset is required; add one at checkout if you do not already own one.

01

STANDARD CONTROLLER

USB MIDI breath controller with an encoder, status LEDs and three stored performance setups.

02

USB-C Cable

USB data and power connection.

03

MIDI Cable

3.5 mm TRS MIDI Type A to 5-pin DIN male MIDI cable.

04

Online Documentation

Setup, Web Configurator and support guides.
